Description
The MALÅ Professional Explorer (ProEx) System is a modular, full-range Ground Penetrating Radar (GPR) system designed to meet the needs of the advanced professional.
Application areas
Common applications include:
- Infrastructure & Construction
- Geotechnical & Environmental
- Archaeology
- Mining & Mineral Exploration
- Military & Police

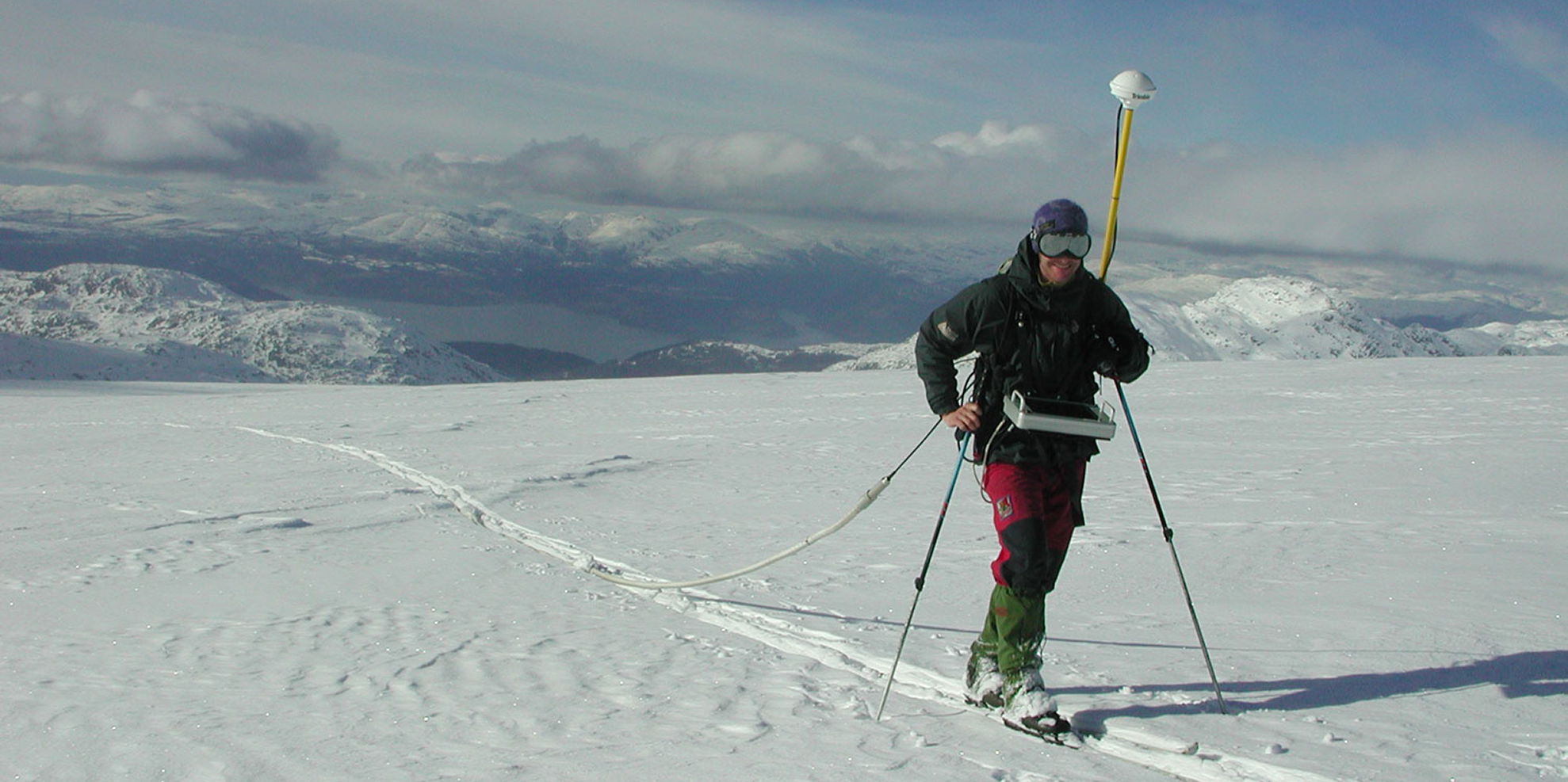

- Arctic studies
Features
Pro Ex control unit
Designed on a modular platform, MALÅ ProfessionalExplorer (ProEx) is the most versatile control unit in the MALÅ range and replaces the world famous RAMAC/GPR CUII.
MALÅ ProEx control unit, coupled with the MALÅ XV Monitor is compatible with a broad range of antennas and offers a flexible and versatile approach to detecting subsurface targets and geological layers accurately, efficiently and in real-time.
Pro Ex monitor – Collecting, processing & presenting GPR data
The MALÅ XV Monitor is a dedicated tool, optimized for the job at hand, i.e. the collection, handling, processing, and presentation of GPR data. The user interface has been designed to be simple, intuitive, and easy to use. Its unique dual function button allows for simple navigation.
MALÅ XV Monitor was designed with field use in mind; the rugged housing is IP65 and has a tough impact-resistant screen. Its high-bright screen displays the data clearly, even when operating in direct sunlight.
Accessories

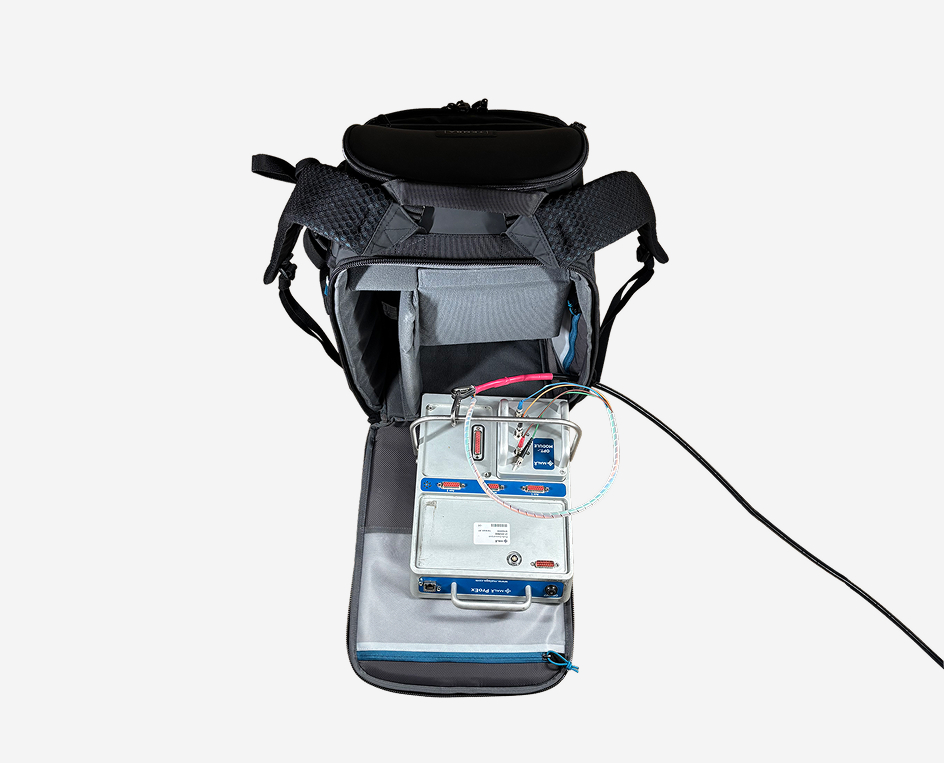

The New MALÅ Backpack
Designed for comfort and efficiency, the MALÅ Backpack is a smart monitor-carrying system that makes data collection easier. With a versatile setup and easy cable management – it provides easy access to the instrument.
The new backpack solution is delivered with our Monitor/PC holder and is compatible with:
- MALÅ ProEx systems with XV11 monitor
- MALÅ ProEx systems with laptop
- MALÅ GX systems with GX Controller solutions (not tablets)
System Configuration
System Configuration

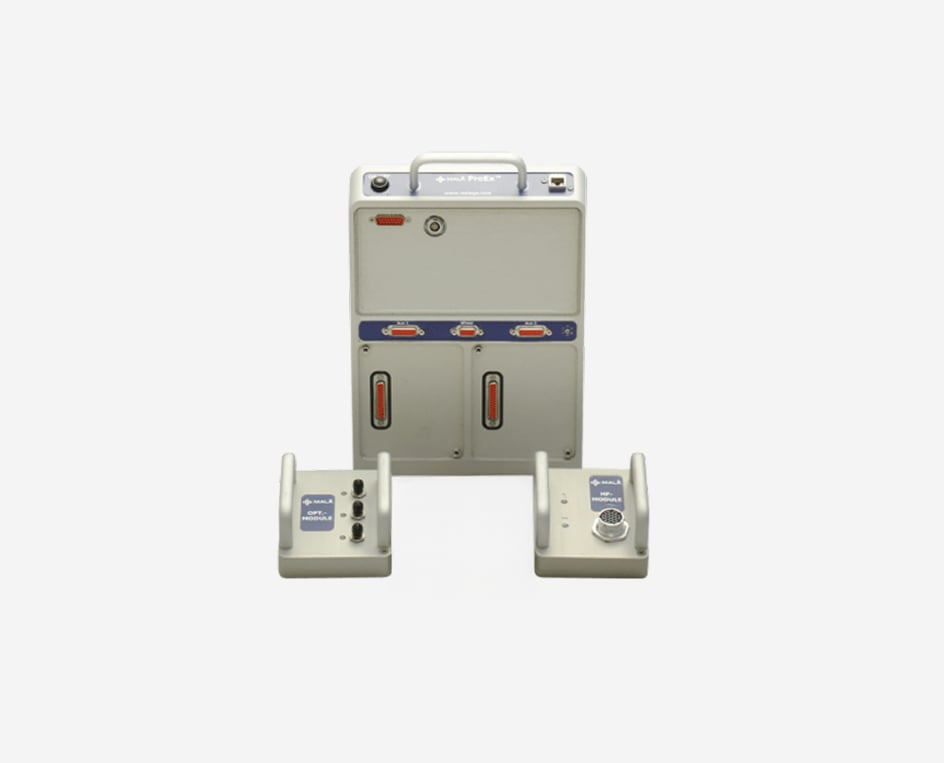

The MALÅ ProEx is a modular digital radar control unit with multi-channel functionality. The unit is designed for two hardware channels (4 data channels). Adding an antenna module allows connection of two separate antennas for simultaneous data collection. As an option, the MALÅ ProEx Expansion Unit can be added to support up to eight individual antennas. A choice of three antenna modules (optical, high frequency and coax) allows the user to connect MALÅ antennas in various configurations, for single, dual or multi-antenna operation.
COMPATIBLE ANTENNAS
Shielded
High-frequency
Rough terrain (RTA)
Unshielded
Separable shielded
Borehole
Technical Specifications - ProEx Control Unit
- Pulse repetition freq.: 100, 200 kHz, not interleaved
- Data bits: 16
- Nr. of samples/trace: 128-2048, in standard configuration, other on request
- Nr. of stacks: 1 – 32768 and auto stacking
- Samplings frequency: 2 – > 400 GHz
- Signal stability: < 70 ps
- Communication interface: Ethernet
- Communication speed: 100 Mbit/s
- Data transfer rate: Antenna dependent
- Acquisition modes: Distance/time/manual
- Power supply: 12 V MALÅ standard battery / external battery
- Operating time: Typically 5 h, antenna dependent
- Software: GroundVision2 or MALÅ XV Monitor
- Antennas: All MALÅ manufactured (not HDR)
- Wheel inputs: 1 master, 1 for each HF-unit
- Operating temp.: -20 °C to +50 °C or 0 °F to 120 °F
- Environmental: IP65
Technical Specifications - XV Monitor
- Power supply: Li-Ion 12 V battery or other external source (9-18 V)
- Operating time: 5 h nominal (12 V battery)
- Operating temp: -20 °C to +50 °C or 0 °F to 120 °F
- Environmental: IP65
- Dimensions: 6 x 21.5 x 5.2 cm (with protruding details 8.6 cm)
- Weight: 6 kg
- Antennas: All MALÅ antennas (not HDR), except when operating the MALÅ borehole antennas in tomographic mode
- Communication: Ethernet 100Mb/s
- Display: LCD (640 x 480 pixels), hi-brite
Technical Specifications - High Freaquency Antennas (HF)
1.2 GHz
The MALÅ 1.2 GHz HF Antenna is a high resolution antenna used for high
quality radar measurements, with the deepest penetration in the MALÅ HF
range. An optional EM sensor enables the detection of radiating 50/60 Hz fields
from power cables and / or other metallic conductors within the structure
under investigation.
- Dimensions: 19 x 11,5 x 11 cm
- Weight: 1.0 kg
(1.2 kg with 50/60 Hz EM sensor option)
1.6 GHz
The MALÅ 1.6 GHz HF Antenna is a high resolution antenna used for high quality
radar measurements, with medium penetration in the MALÅ HF range. An
optional EM sensor enables the detection of radiating 50/60 Hz fields from
power cables and/ or other metallic conductors within the structure under
investigation.
- Dimensions: 16 x 9 x 11 cm
- Weight: 0.6 kg
(1.2 kg with 50/60 Hz EM sensor option)
2.3 GHz
The MALÅ 2.3 GHz HF Antenna is a high resolution antenna used for high
quality radar measurements, with the most shallow penetration in the
MALÅ HF range.
- Dimensions: 16 x 9 x 11 cm
- Weight: 0.5 kg
Accessories for HF antennas
- HF Cart
- Single measuring wheel
- Extension handle/ cables
- Skid / wear plates
Road Cart

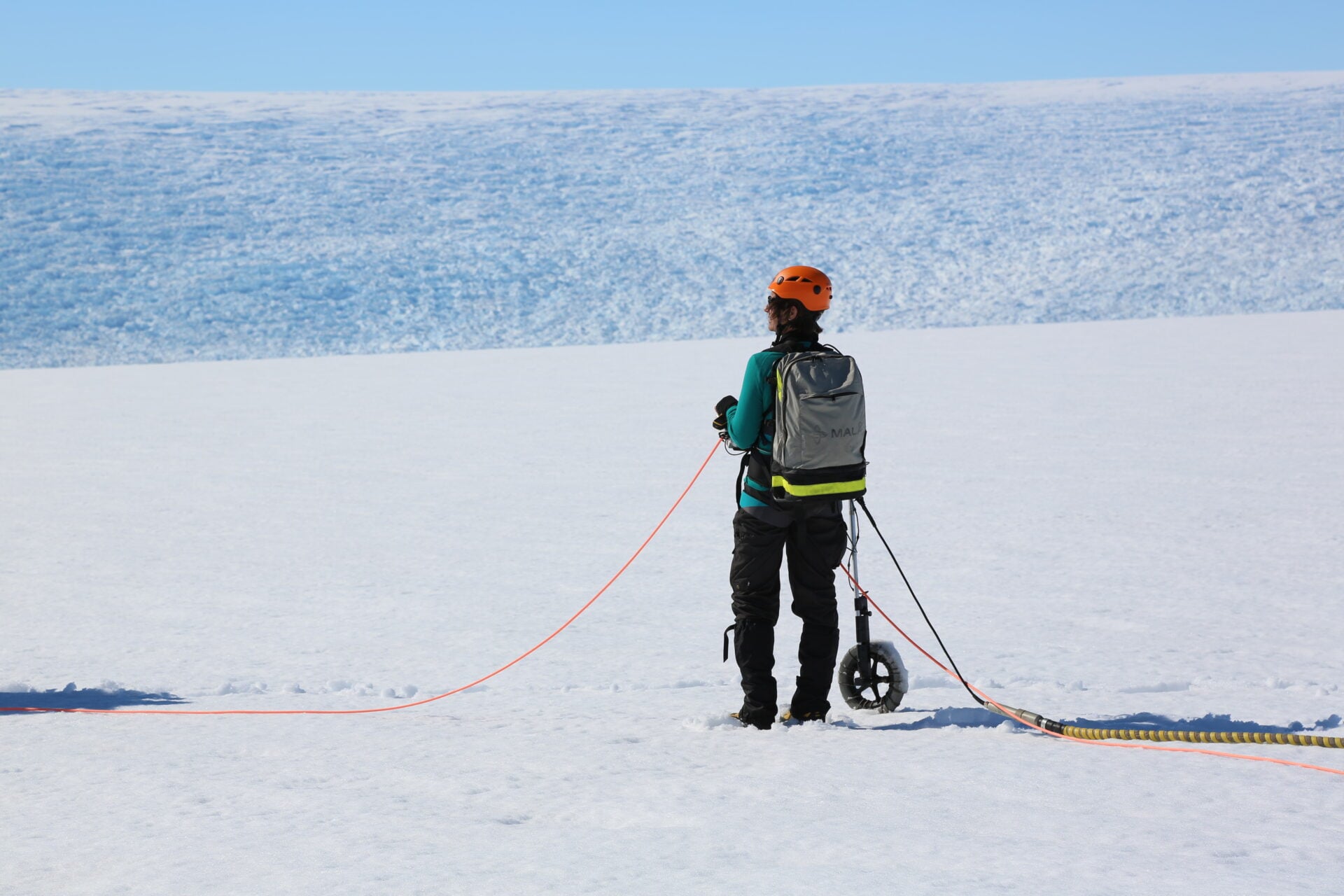

Technical Specifications - Rough Terrain Antennas (RTA)
30 MHz
The MALÅ RTA 30 MHz is suitable for investigations requiring the greatest depth penetration.
- Length: 13.06 m (distance Tx-Rx: 6 m)
- Weight: 8 kg
50 MHz
The MALÅ RTA 50 MHz is suitable for investigations that require medium to deep, depth penetration.
- Length: 9.25 m (distance Tx-Rx: 4 m)
- Weight: 7.0 kg
100 MHz
The MALÅ RTA 100 MHz is suitable for investigations that require medium depth penetration.
- Length: 6.56 m (distance Tx-Rx: 2 m)
- Weight: 6.0 kg
Accessories for RTA
- Towing belt
- Skid plates
- Hip chain
Technical Specifications - Shielded Antennas
100 MHz
The MALÅ Shielded 100 MHz antenna is used for medium to low resolution investigations.
- Dimensions: 125 x 78 x 20 cm
- Weight: 25.5 kg
- Applications: Geological and geotechnical applications.
250 MHz
The MALÅ Shielded 250 MHz antenna is a general purpose antenna, used for investigations that require medium depth penetration and medium resolution.
- Dimensions: 74 x 44 x 16 cm
- Weight: 7.85 kg
- Applications: Utility detection, Underground Storage Tank (UST) and void detection.
500 MHz
The MALÅ Shielded 500 MHz antenna is a general purpose antenna for shallow to medium depth investigations.
- Dimensions: 50 x 30 x 16 cm
- Weight: 5.0 kg
- Applications: Utility detection, road and pavement surveys.
800 MHz
The MALÅ Shielded 800 MHz antenna is suitable for shallow depth investigations.
- Dimensions: 38 x 20 x 12 cm
- Weight: 2.6 kg
- Applications: Road / pavement surveys and concrete / structural investigations.
Accessories for shielded antennas
- Towing kit
- Skid plates
- Measurement triggering wheels
- Rough Terrain Cart (RTC)
- Road Cart
Technical Specifications - Borehole Antennas
100 MHz Slimhole Borehole Antenna
The MALÅ 100 MHz Slimhole Borehole Antenna is the lowest frequency available, used for medium to low resolution investigations.
Dimensions:
- Tx: Length: 189 cm (including batteries) – Diameter: 40 mm
- Weight: 3.3 kg
- Rx: Length: 176 cm (including batteries) – Diameter: 40 mm
- Weight: 3.6 kg
250 MHz Borehole Antenna
The MALÅ Borehole 250 MHz Antenna is a general purpose antenna, used for investigations that require medium resolution.
Dimensions:
- Tx/Rx: Length: 129 cm (including batteries) – Diameter: 48 mm
- Weight: 4.75 kg
Accessories for borehole antennas
- Antenna separators
- Tripods
- Mechanical / digital depth encoders
- Electrical winches
