Large scale 3D GPR mapping

MALÅ 3D Imaging Radar Array (MIRA) is a high-speed, one-pass 3D GPR system and the most effective solution for large-area GPR mapping.

MIRA HDR includes our world-renowned MALÅ HDR real-time sampling technology providing ultra-fast measurements and razor sharp data. The solution seamlessly integrates acquisition, processing, QA/QC, positioning and interpretation of ground penetrating radar data.

Typical application areas




MALÅ MIRA HDR is designed for any large scale 3D mapping project. Some of the more common application areas include:

  • Large area mapping
  • Utility mapping
  • Archaeology
  • Road investigation
  • Underground Storage Tank (UST detection)



  • Unexploded ordnance (UXO)
  • Sinkhole detection
  • Bedrock mapping
  • Clandestine graves
  • General site investigations

Features

Large Area Mapping

With the highest data-channel density on the market MALÅ MIRA HDR delivers unsurpassed class-leading resolution. The MALÅ MIRA HDR produces data with less noise, at higher speeds, with more functionality using improved mechanical design and modern software. The MIRA HDR is a cost-effective 3D GPR array, optimized for mapping large areas to locate buried objects and artefacts.

132 data channels

In standard configuration the MIRA HDR 3D GPR array uses a 500 MHz centre frequency, 11 transmitters and 12 receivers. The system is normally set up to collect 22 data channels but the system is capable of collecting up to 132 data channels simultaneously since it allows data collection from any transmitter-receiver combination in the whole array.

MIRA HDR delivers 32-bit output even at highway speeds, producing exceptional data quality. The 6.5 cm channel spacing, allows for the collection of precise, high resolution data.

MALÅ HDR (High Dynamic Range) GPR

The MALÅ MIRA has been redesigned to take full advantage of the MALÅ HDR technology, giving you the best possible GPR data quality, resolution, bandwidth .

The MALÅ HDR technology produces data with significantly lower noise levels, compared to traditional GPR systems. A lower noise floor gives a wider bandwidth when compared to conventional time-interleaved systems. This removes more of the background interference, giving sharper data with higher contrast, and the ability to see deeper than non-HDR systems.

Go to software




Guidleine Geo MALÅ MIRA HDR bell curve w arrows

MALÅ carrier solutions

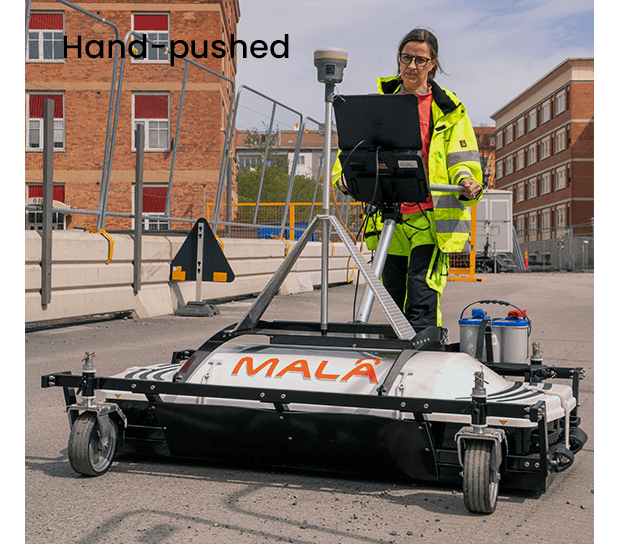

Like many MALÅ GPR products, there are a variety of carrier solutions available to suit different applications. The MIRA HDR is designed to be used in a regular lightweight trailer for road surveys or front-mounted for precision work. Since MALÅ GPR solutions are used in a wide variety of situations, please contact us if you have need for optimized carrier solutions for more specialized applications.

The materials used are chosen for demanding fieldwork yet compact and lightweight. Contact us to see what the most suitable solution is to fit your region and application.

Software

MIRAsoft HDR

With the new MIRAsoft HDR acquisition software, you will experience a modern and easy-to-use interface with integrated navigation aids helping you to maximize the quality of your measurements. MIRAsoft HDR tracks the performance and data collection in detail helping you to maintain the correct speed and course. The software shows continuous time-slices (amplitude plots) and tracks each trace with high precision positioning in real-time.

MIRAsoft HDR acquires your 3D ground penetrating radar data but can also be used to view and edit previous projects; it exports to several formats for simple integration with other software packages. Recommended post-processing and interpretation software includes rSlicer and GPR-SLICE.



MALÅ MIRAsoft HDR laptop
